Sequence block¶

Sequence assembly¶

In Spin-Scenario, each sequence always starts with a keyword seq, followed by a pair of braces, containing the sequence body. The sub-blocks are separated by default in the body via commas or semicolons (s1). The concurrent or parallel block can be simply assembled through an arithmetic operator +. E.g. rf + gz defines a selective excitation event, and gx + gy + gz defines a simultaneous X/Y/Z gradient event. The newly built concurrent blocks can be directly inserted into any position of the pulse sequence (s2). The sequence can be also written in multi-line style, which may be intuitive for more sophisticated sequences.

local s1 = seq{d1, rf, acq}
local s2 = seq{rf + gz,
            gxPre + gyPre + gzReph,
            gx + acq,
            delay}

It should be noted that pulse sequences can be also nested inside any other sequence, since they themselves are essentially serial blocks. This feature allows the reuse of predesigned pulse sequence templates, which may further improve the scripting efficiency.

Arrayed experiments are widely employed in both MR imaging and MR spectroscopy. To this end, a simple and flexible loop syntax is specially designed. Basically, the sequence repetitions include both global and local loops. A specific block followed by a global symbol # indicates a series of separate experiments is conducted, with the block taking a set of different values. E.g.

seq{rf90I, tau#, rf180, tau#, rf90, acq}

describes a modified INEPT arrayed experiments where the S-spin signal is observed immediately after it has been transferred from I for a set of varied time in delay block tau.

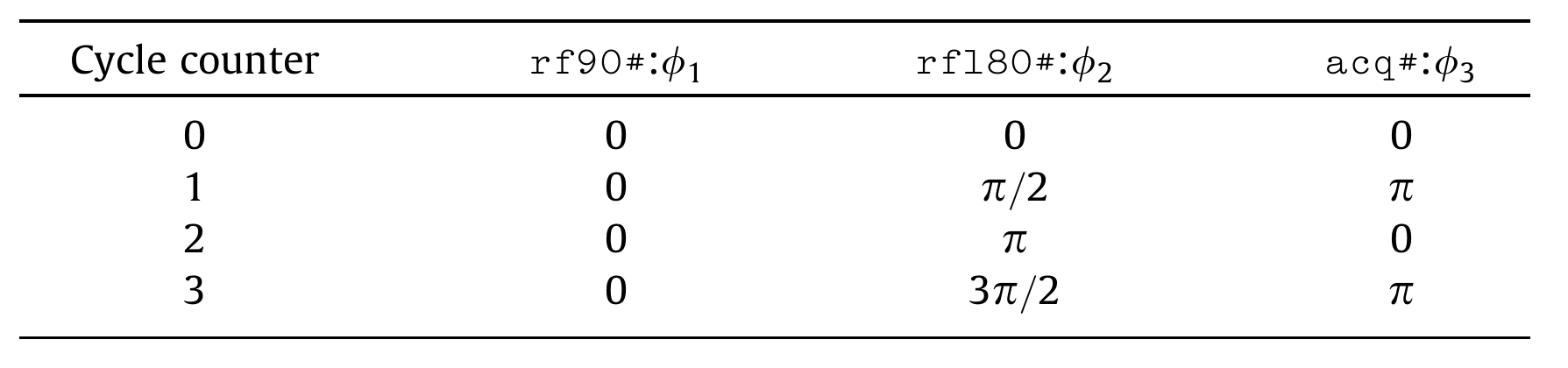

The above idea is also shared with phase cycling for r.f. pulses as well as signal acquisition. Consider, for example, a suitable table for the spin echo experiment

seq{rf90#, t1, rf180#, t2, acq#}

is given in table below.

The phases for rf90, rf180 and acq are x, xy-x-y and x-x respectively, so the total number of steps (n = 4) in the phase cycle is dominated by the maximum cycle counts of all relevant blocks, while other blocks with smaller cycle number will repeat themselves during the complete repetitions.

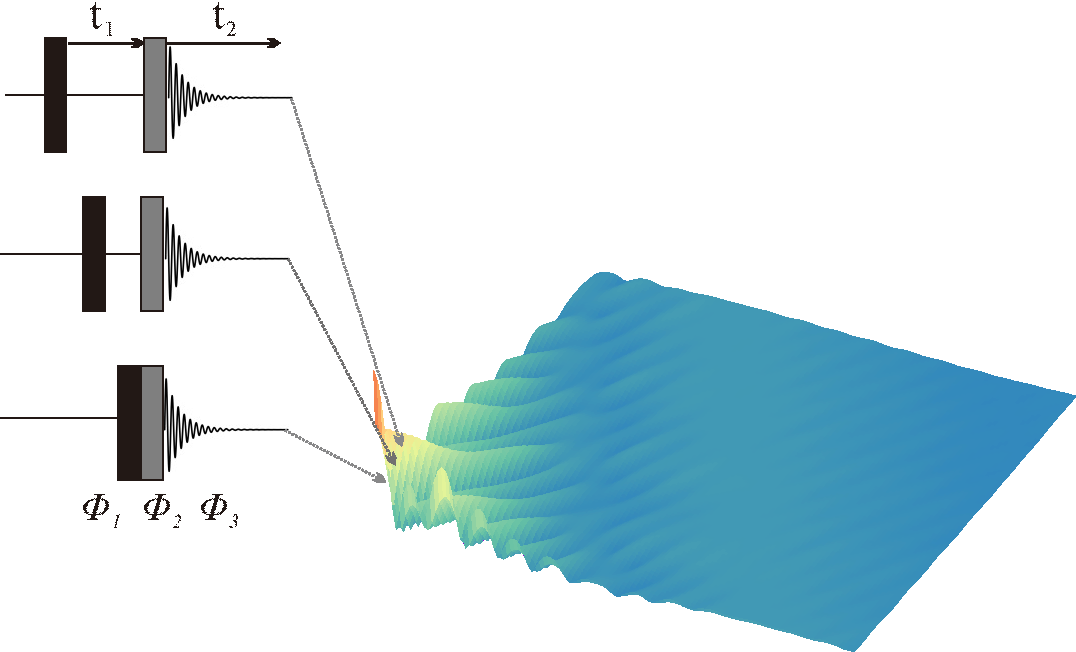

Further, to perform two-dimensional, three-dimensional or higher-dimensional experiments in {Spin-Scenario}, the arraying concept was generalized by assigning an additional cycle priority behind the symbol #. Then the experimental hierarchy can be logically divided into levels like outer level and inner level. Taking a two-dimensional COSY sequence enclosing phase cycling for example, as shown below

each row of the data matrix is the result of a complete set of phase cycled experiments, all with the same value of t1, but with similar cycling of the phases phi1 , phi2 and phi3 according to the phase table. When acquisition of one row is completed, the variable delay t1 is changed, and the acquisition procedure is repeated. The kernel script of this experiment is then

seq{rf90a#2, t1#1, rf90b#2, acq#2}

The biggest priority number always indicates the innermost loop, which represents the phase cycling in this case.

For local loops definition within each TR repetition, e.g. multi-echo acquisitions in EPI sequence s3, the symbol ~ is adopted to represent the repetitive echo-train within the effective TE. Similar to the symbol #, the local loop count is automatically determined by the specific varied block gx.

local s3 = seq{rf + gz,
              gxPre + gyPre# + gzReph,
              delay1,
              (gx + gy + acq)~,
              delay2}

The syntax for pulse sequence programming is minimalism but highly flexible. The isolated definition of individual blocks, together with one-line assembly of sequence, offer a WYSIWYG way of understanding the pulse sequence structure.
